In distributed mode, Spark uses a master/slave architecture with one central coordinator and many distributed workers. The central coordinator is called the driver.The driver communicates with a potentially large number of distributed workers called executors. The driver runs in its own Java process and each executor is a separate Java process. A driver and its executors are together termed a Spark application.A Spark application is launched on a set of machines using an external service called a cluster manager.
Driver
The driver is the process where the main() method of your program runs. It is the process running the user code that creates a SparkContext, creates RDDs, and performs transformations and actions. The Spark driver is responsible for converting a user program into units of physical execution called tasks.
A Spark program implicitly creates a logical directed acyclic graph (DAG) of operations. When the driver runs, it converts this logical graph into a physical execution plan. Spark performs several optimizations, such as pipelining map transformations together to merge them, and converts the execution graph into a set of stages. Each stage, in turn, consists of multiple tasks.
Given a physical execution plan, a Spark driver must coordinate the scheduling of individual tasks on executors. When executors are started they register themselves with the driver, so it has a complete view of the application’s executors at all times. Each executor represents a process capable of running tasks and storing RDD data.The Spark driver will look at the current set of executors and try to schedule each task in an appropriate location, based on data placement.
Executors
Spark executors are worker processes responsible for running the individual tasks in a given Spark job.Executors have two roles. First, they run the tasks that make up the application and return results to the driver. Second, they provide in-memory storage for RDDs that are cached by user programs, through a service called the Block Manager that lives within each executor. Because RDDs are cached directly inside of executors, tasks can run alongside the cached data.
Cluster Manager
Spark depends on a cluster manager to launch executors and, in certain cases, to launch the driver. The cluster manager is a pluggable component in Spark. This allows Spark to run on top of different external managers, such as YARN and Mesos, as well as its built-in Standalone cluster manager.
let’s walk through the exact steps that occur when you run a Spark application on a cluster
1. The user submits an application using spark-submit.
2. spark-submit launches the driver program and invokes the main() method specified by the user.
3. The driver program contacts the cluster manager to ask for resources to launch executors.
4. The cluster manager launches executors on behalf of the driver program.
5. The driver process runs through the user application. Based on the RDD actions and transformations in the program, the driver sends work to executors in the form of tasks.
6. Tasks are run on executor processes to compute and save results.
7. If the driver’s main() method exits or it calls SparkContext.stop(), it will terminate the executors and release resources from the cluster manager.
spark-submit
Spark provides a single tool for submitting jobs across all cluster managers, called spark-submit.
Below is an example
spark-submit --master spark://hostname:7077 --deploy-mode cluster --class com.consumer.SparkDstreamConsumer --name "Call Quality Test" --total-executor-cores 5 --executor-memory 5g spark-0.0.1-SNAPSHOT.jar
When spark-submit is called with nothing but the name of a script or JAR, it simply runs the supplied Spark program locally. The –master flag specifies a cluster URL to connect to; in this case, the spark:// URL means a cluster using Spark’s Standalone mode. Below is the possible values

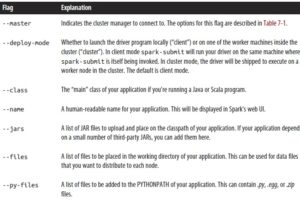

Common Flags used
